Induction bearing heaters

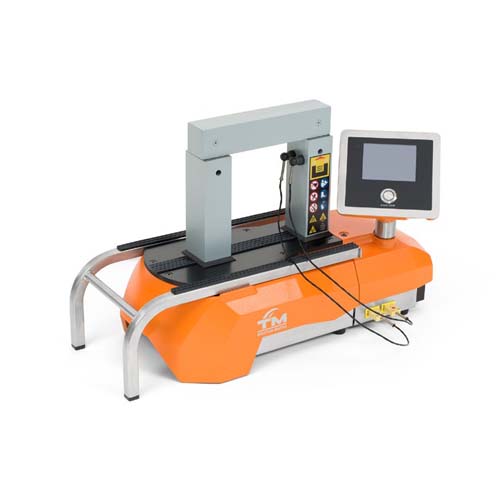

SURETHERM 10X
SPECIFICATIONS
| Power Rating | 1.5 - 3 kVA |
| Facility Power | 110 - 230 V / 13 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 21 kg / 46.3 lb |
| Dimensions (LxBxH) | 450 x 210 x 275 mm |
| 17.7 x 8.3 x 10.8 inches |
WORKPIECE
| Min. bore diameter | ø 10 mm / ø 0.4 inches |
| Max. outer diameter | ø 400 mm / ø 15.75 inches |
| Max. weight | 50 kg / 110 lb |

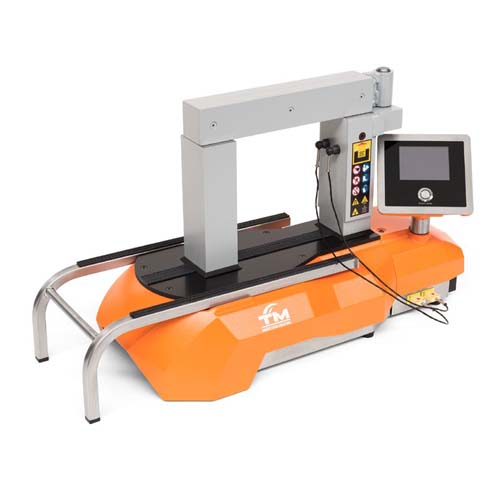

SURETHERM 20X
SPECIFICATIONS
| Power Rating | 1.8 - 3.7 kVA |
| Facility Power | 110 - 230 V / 16 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 40 kg / 88 lb |
| Dimensions (LxBxH) | 540 x 275 x 365 mm |
| 21.3 x 10.8 x 14.4 inches |
WORKPIECE
| Min. bore diameter | ø 10 mm / ø 0.4 inches |
| Max. outer diameter | ø 500 mm / ø 19.7 inches |
| Max. weight | 100 kg / 220 lb |
SURETHERM 30X
SPECIFICATIONS
| Power Rating | 8 kVA |
| Facility Power | 400 - 575 V / 20 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 85 kg / 187 lb |
| Dimensions (LxBxH) | 695 x 330 x 435 mm |
| 27.4 x 13 x 17.1 inches |
WORKPIECE
| Min. bore diameter | ø 15 mm / ø 0.6 inches |
| Max. outer diameter | ø 600 mm / ø 23.6 inches |
| Max. weight | 200 kg / 440 lb |
SURETHERM PRO 1X
SPECIFICATIONS
| Power Rating | 12.8 kVA |
| Facility Power | 400 - 480 - 575 V / 32 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 157 kg / 346 lb |
| Dimensions (LxBxH) | 850 x 420 x 950 mm |
| 33.5 x 16.5 x 37.4 inches |
WORKPIECE
| Min. bore diameter | ø 30 mm / ø 1.2 inches |
| Max. outer diameter | ø 1000 mm / ø 39.4 inches |
| Max. weight | 400 kg / 880 lb |

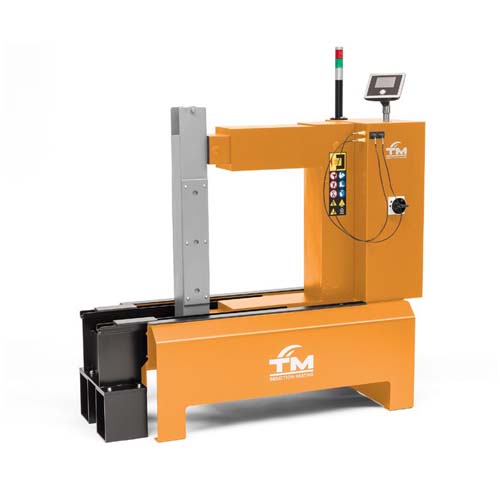

SURETHERM PRO 3X
SPECIFICATIONS
| Power Rating | 25.2 kVA |
| Facility Power | 400 - 480 - 575 V / 63 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 280 kg / 617 lb |
| Dimensions (LxBxH) | 1080 x 500 x 1250 mm |
| 42.5 x 19.7 x 49.2 inches |
WORKPIECE
| Min. bore diameter | ø 40 mm / ø 1.6 inches |
| Max. outer diameter | ø 1500 mm / ø 59 inches |
| Max. weight | 800 kg / 1764 lb |

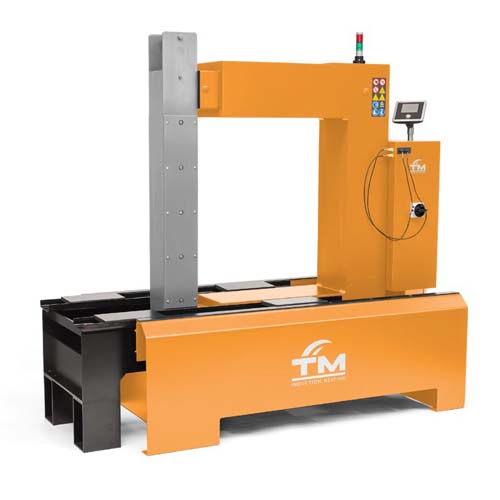

SURETHERM PRO 6X
SPECIFICATIONS
| Power Rating | 40 kVA |
| Facility Power | 400 - 480 - 575 V / 100 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 650 kg / 1433 lb |
| Dimensions (LxBxH) | 1500 x 800 x 1600 mm |
| 59 x 31.5 x 63 inches |
WORKPIECE
| Min. bore diameter | ø 85 mm / ø 3.35 inches |
| Max. outer diameter | ø 2000 mm / ø 78.75 inches |
| Max. weight | 1600 kg / 3527 lb |
